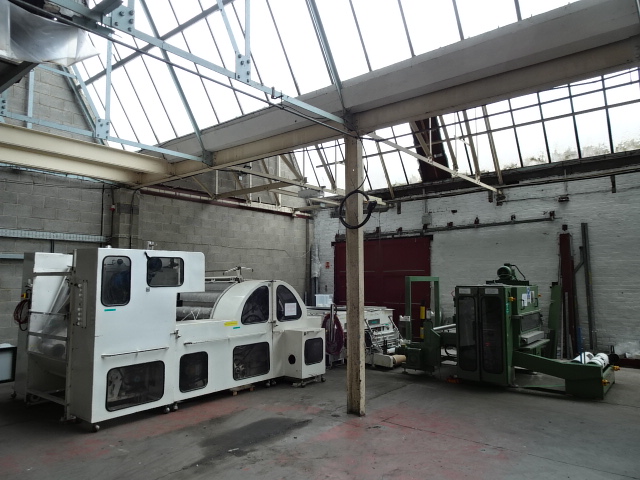

Tatham Laboratory Non Woven Carding and Needle Loom line (13067)

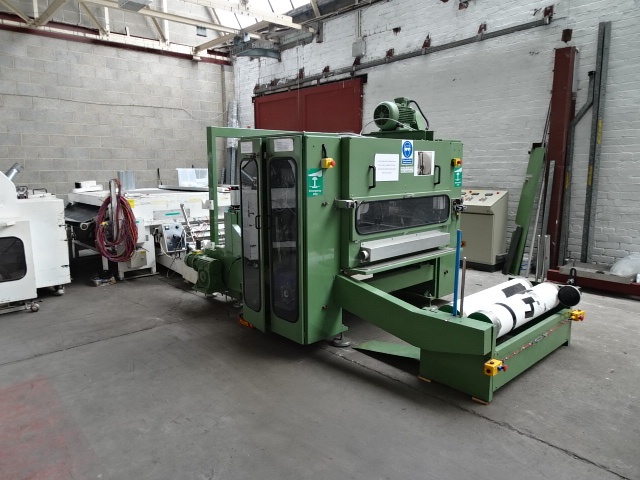

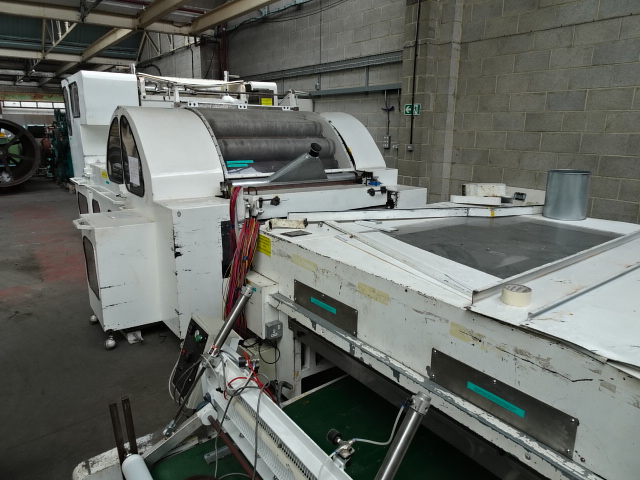

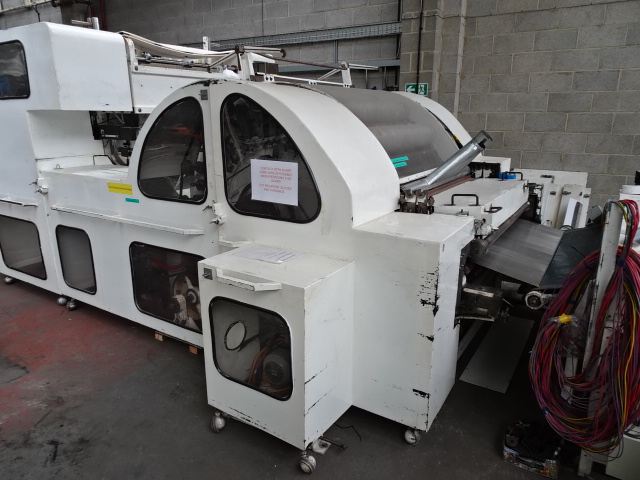

Laboratory Nonwoven line (Ref. 13067)<br> <br> Briefly comprising :<br> • Hopper feeder<br> • Carding machine<br> • Crosslapper<br> • Needleloom<br> • Batch Winder<br> <br> <br> <br> Hopper feeder<br> 48 inch // 1200mm working width<br> Garnett controls Microweigh automatic feed control<br> <br> Carding Machine<br> Working width 48 inch // 1200mm<br> Feedsheet<br> 2 Feed rollers<br> Licker-in & tummer<br> Main Cylinder 49 inch with 7 pairs of worker/stripper<br> Doffer<br> Flycomb<br> Existing card wire<br> <br> Crosslapper <br> input conveyor 1200 mm <br> Output 1000mm <br> <br> Needleloom <br> Single Downstroke 1000mm working width<br> Needle Board depth 210mm<br> Needle board width 1050mm<br> Needle depth =20 to – 20<br> Holes in needle board 1001 x 14 rows = 1,414<br> Needles as existing<br> <br> Batch winder <br> up 1000mm working width<br>
