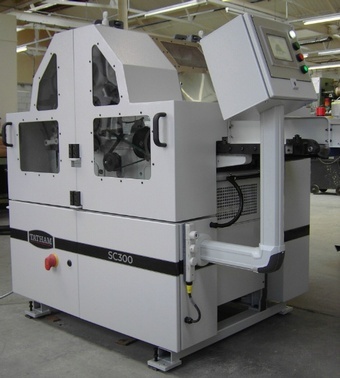

Tatham Laboratory( Research/Sample) Non Woven Card
Laboratory Sample Card
300 mm wide
3 - Feed Rollers 40mm
1 – Taker-in 130 mm
1 - Tummer 130 mm
1 - Swift 400 mm
1 - Tummer Worker 115 mm
3 - Strippers 65 mm
3 - Workers 115 mm
1 – Fancy (if applicable)100 mm
1 - Flystripper 65 mm
1 - Doffer 270 mm
Optional Lap drum
Sealed bearings
Flycomb with ball bearing linkage
Totally enclosing interlocked guards
Electrical panel and controls to CE Standard
Complete with 1.5 Kw motor (feed swift & workers)
Separate motor drive (inverter driven) to doffer
Card clothing – wire specification to be agreed
Type - Nonwoven - more
Enquire about Tatham Laboratory( Research/Sample) Non Woven Card
